Product Description

  • Overview
  • Product Description
  • Specification
  • Certifications
  • Our Exhibition
  • FAQ
Overview
Basic Info.
Model NO. 181018
Delivery Time 7 Days
Service OEM/ODM Acceptable

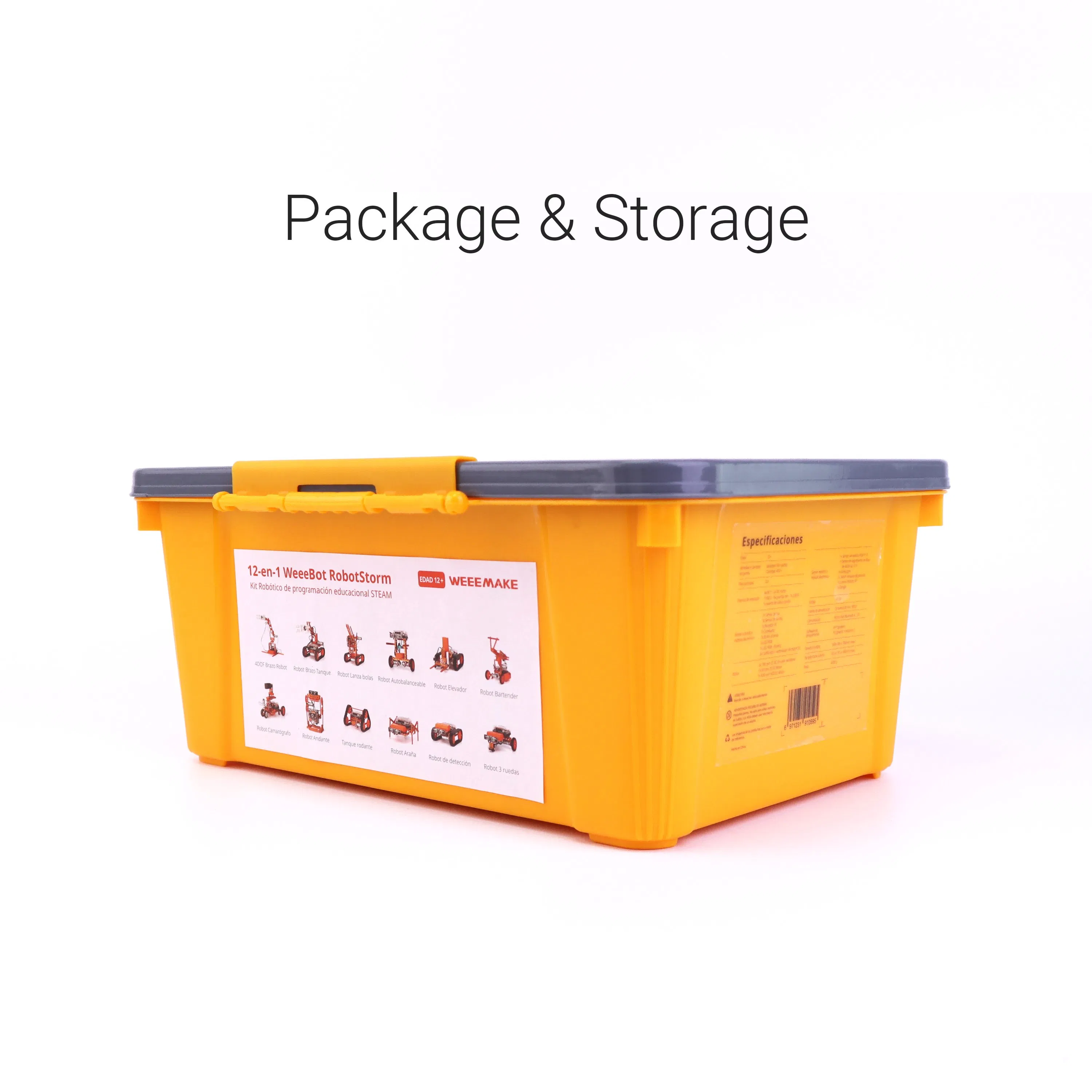

Transport Package Plastic
Specification 437 x 320 x 200 mm
Origin China
HS Code 90230090
Packaging & Delivery
Package Size 49.00cm * 34.00cm * 25.00cm
Package Gross Weight 5.500kg
Lead Time 7 days (1 - 20 Pieces)
15 days (21 - 100 Pieces)
To be negotiated ( > 100 Pieces)
Product Description
Educational Robot Kit Banner 1 Educational Robot Kit Banner 2

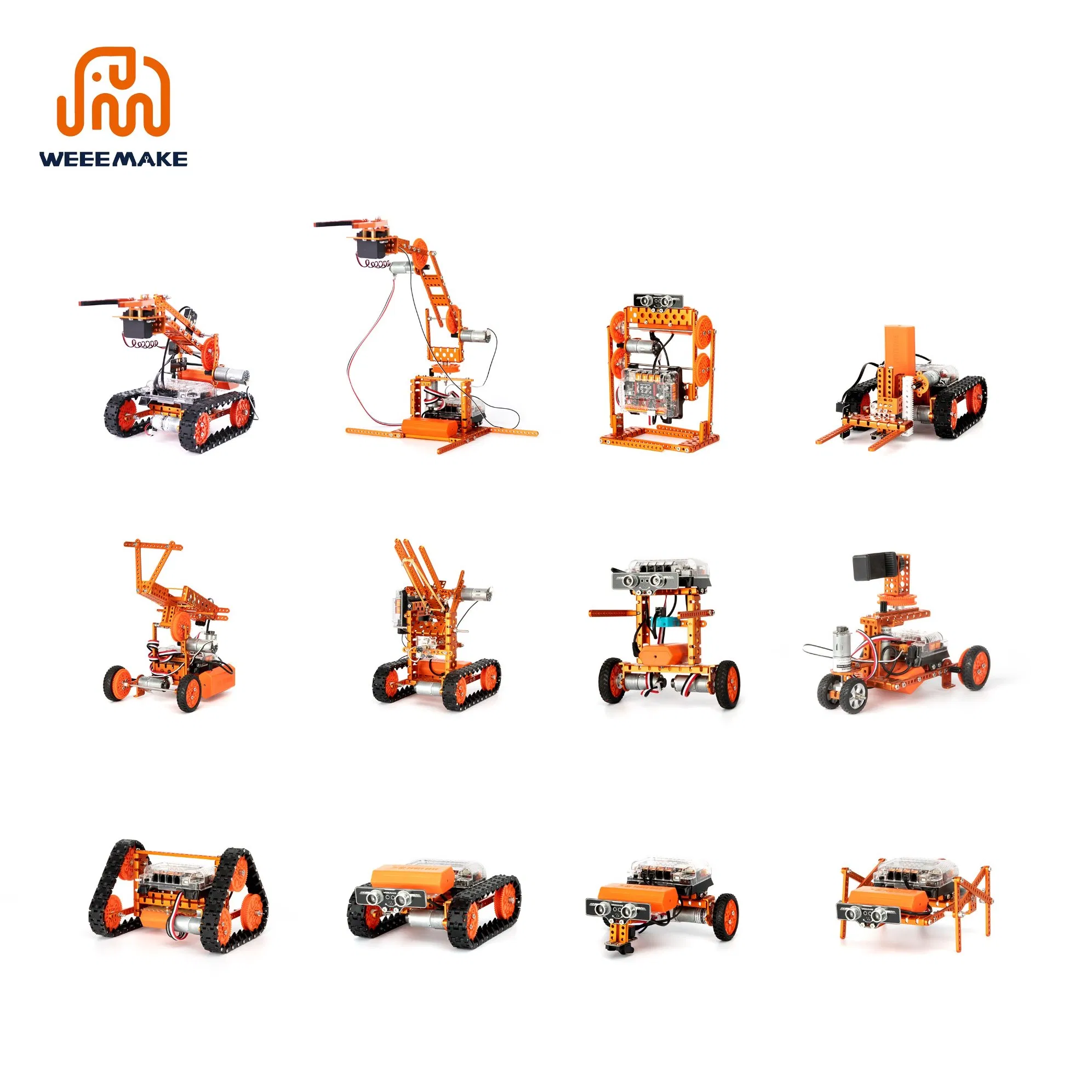

12 in 1 WeeeBot RobotStorm STEAM Robot Kit

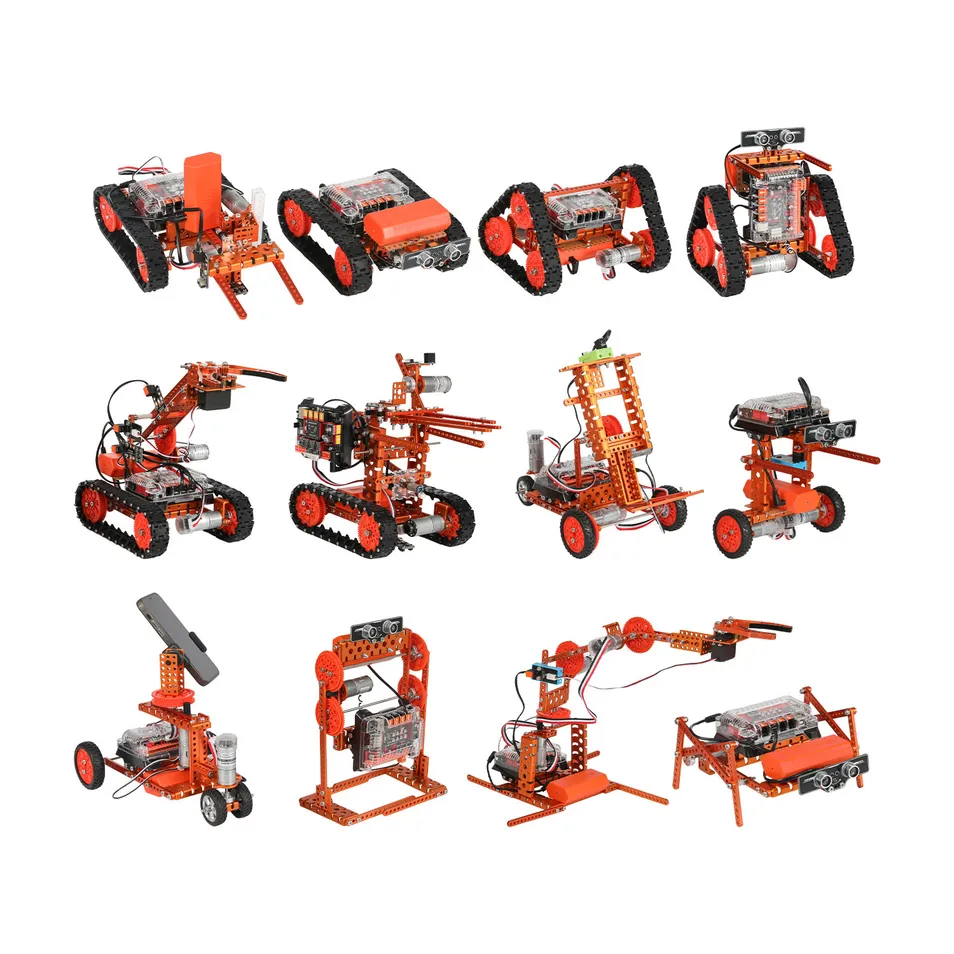

12 in 1 Robot Kit Main Setup

The 12-in-1 WeeeBot Robotstorm STEAM Robot Kit is a multi-functional DIY ultimate STEAM robot kit. It has more than 450 parts and contains 12+ cool pre-set forms. Whether you are a mechanical or an electronics engineer, a software engineer, a teacher, a student, or a maker, this kit allows you to easily learn robot-related mechanical structure, electronics, and programming knowledge, encouraging teamwork for robot competitions.

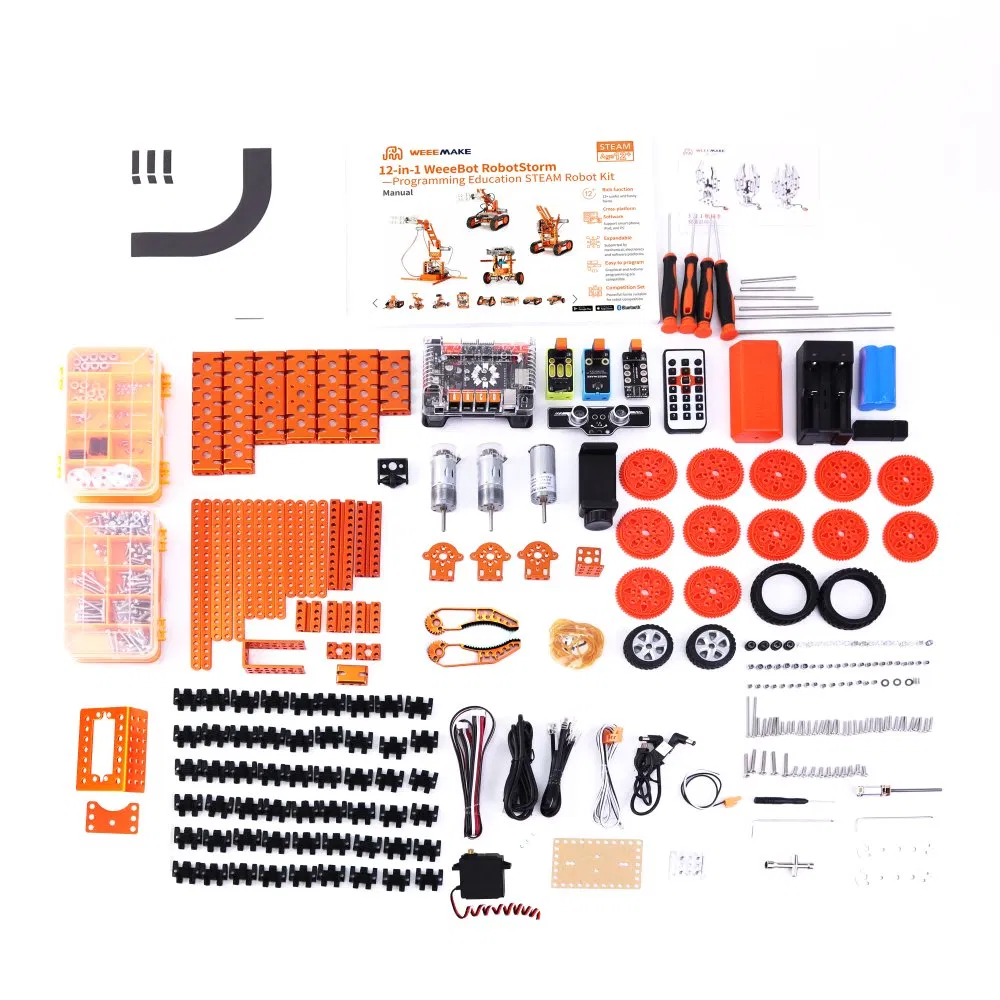

This kit is a powerful parts library consisting of more than 450 parts. With heavy-duty mechanical parts such as beams, plates, brackets, gears, grippers, tracks, shafts, wheels, and easy-to-use electronic modules like the ELF mainboard, RGB ultrasonic sensor, Line-following sensor, gyroscope sensor, limit switch, RGB LED-8 module, light sensor, sound sensor, buzzer, IR receiver, Bluetooth module, and Bluetooth dongle, you can get an enhanced hands-on experience on 12 different programmable robots.

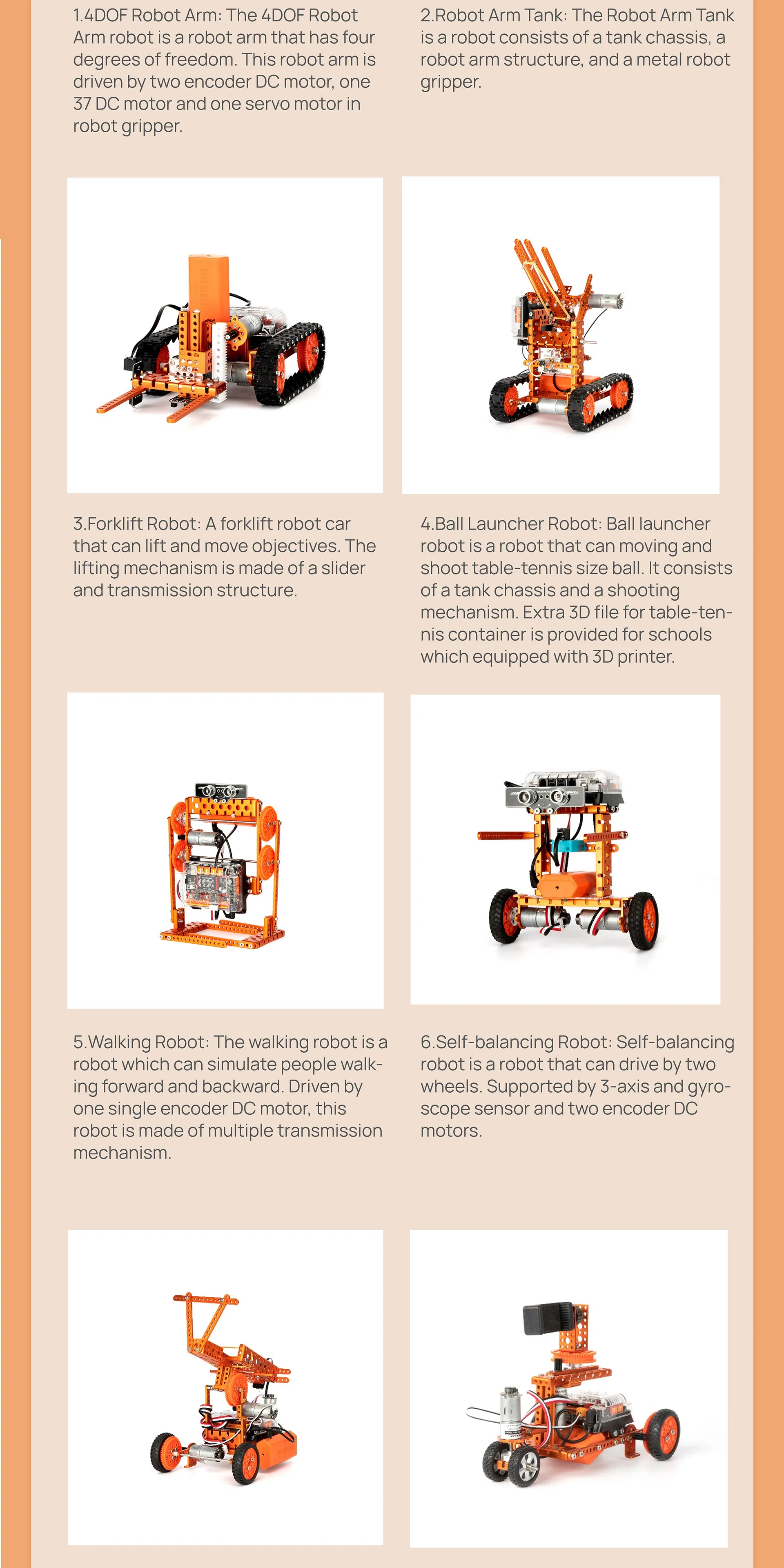

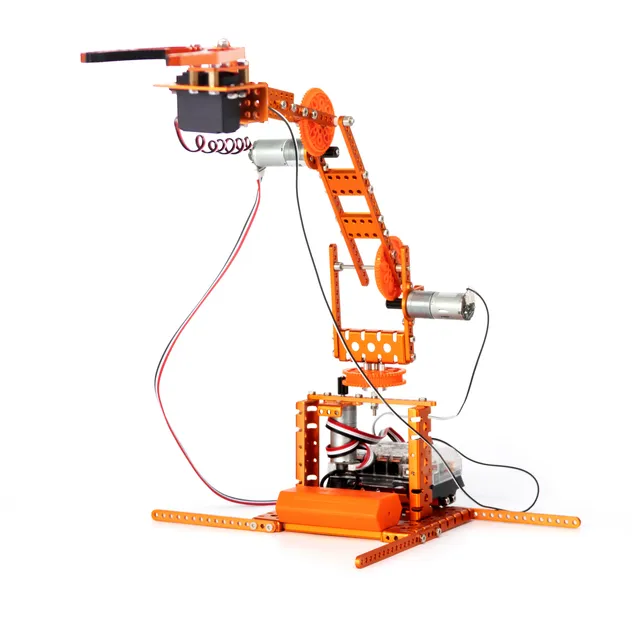

4DOF Robot Arm
4DOF Robot Arm
The 4DOF Robot Arm robot is a robot arm that has four degrees of freedom. This robot arm is driven by two encoder DC motors, one 37 DC motor, and one servo motor in the robot gripper.

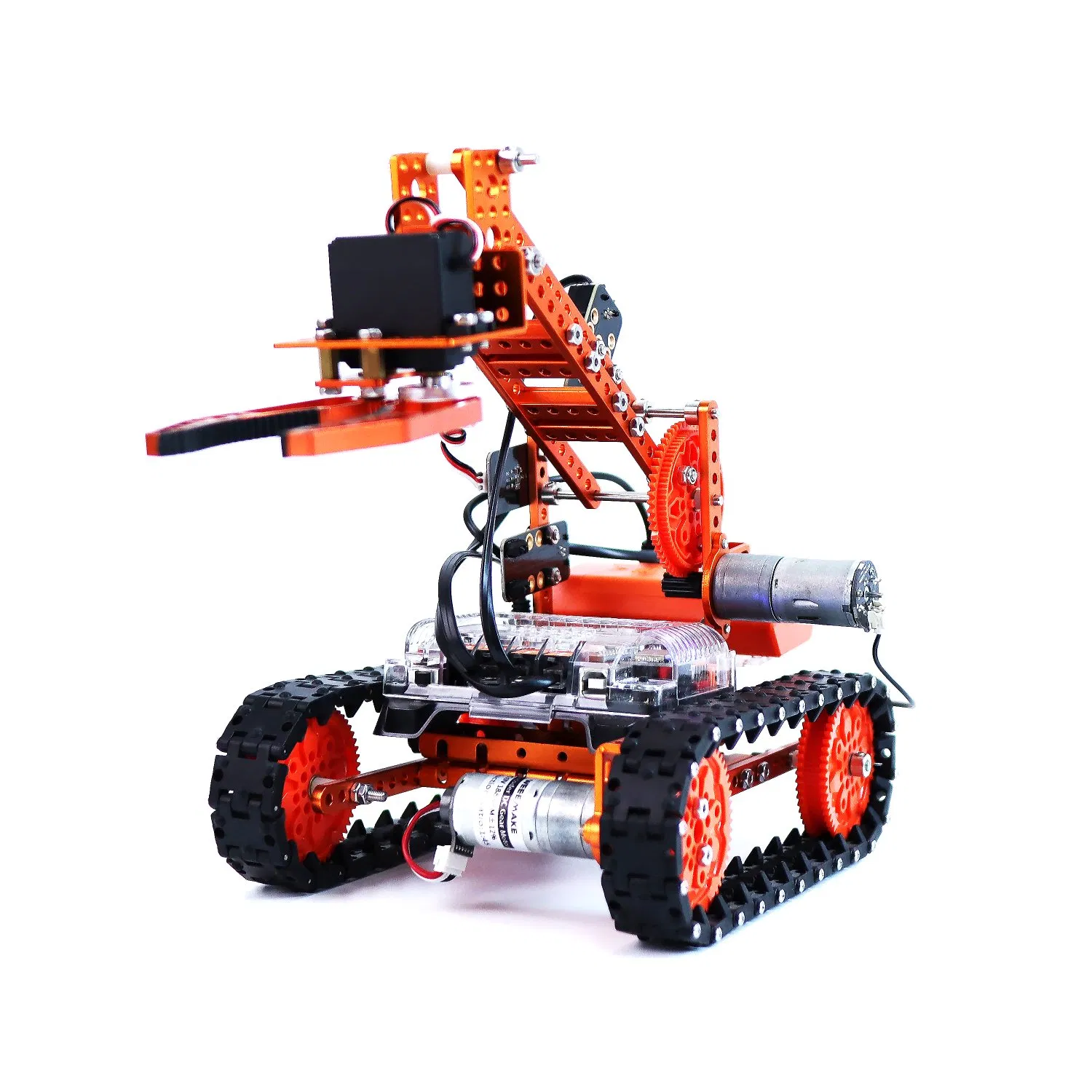

Robot Arm Tank
Robot Arm Tank
The Robot Arm Tank is a robot consisting of a tank chassis, a robot arm structure, and a metal robot gripper.
Forklift Robot
Forklift Robot
A forklift robot car that can lift and move objects. The lifting mechanism is made of a slider and transmission structure.

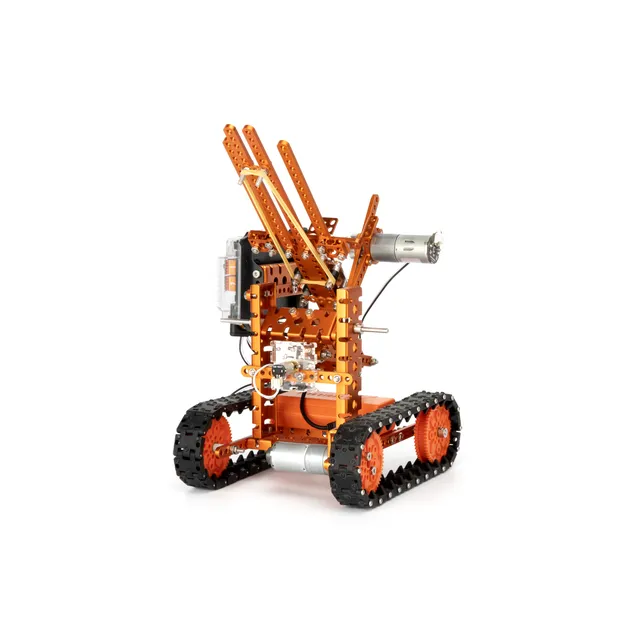

Ball Launcher Robot
Ball Launcher Robot
The Ball launcher robot can move and shoot table-tennis size balls. It consists of a tank chassis and a shooting mechanism.

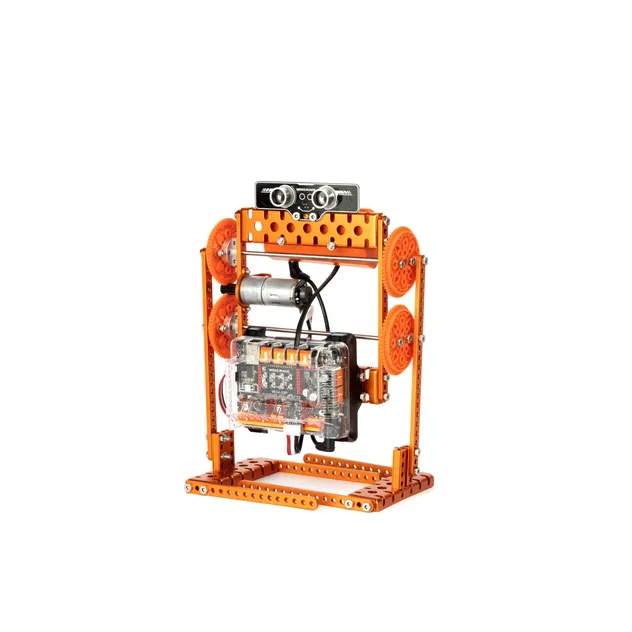

Walking Robot
Walking Robot
The walking robot simulates people walking forward and backward. Driven by a single encoder DC motor, it features a multiple transmission mechanism.

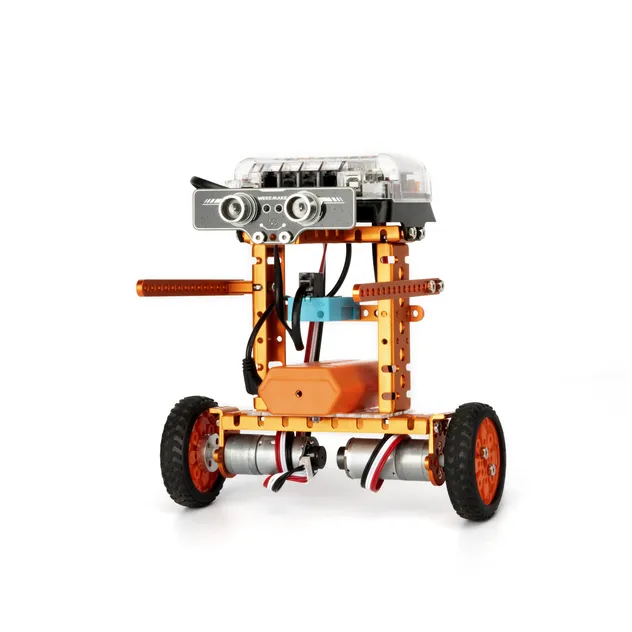

Self-balancing Robot
Self-balancing Robot
A self-balancing robot driven by two wheels, supported by a 3-axis gyroscope sensor and two encoder DC motors.

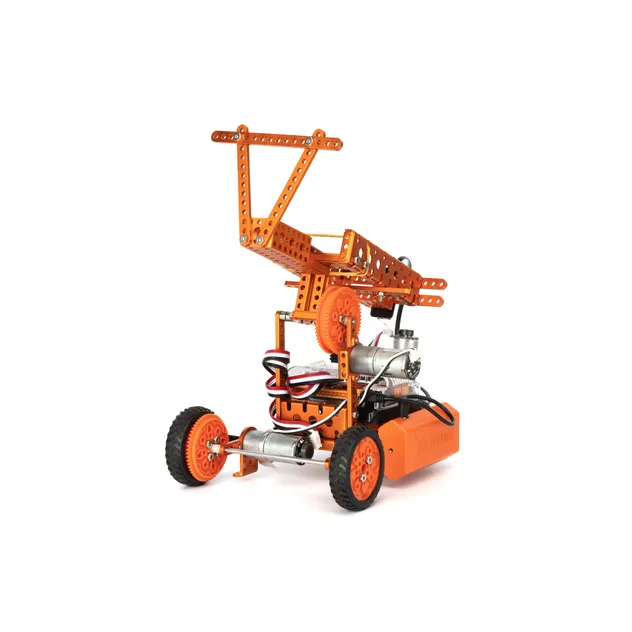

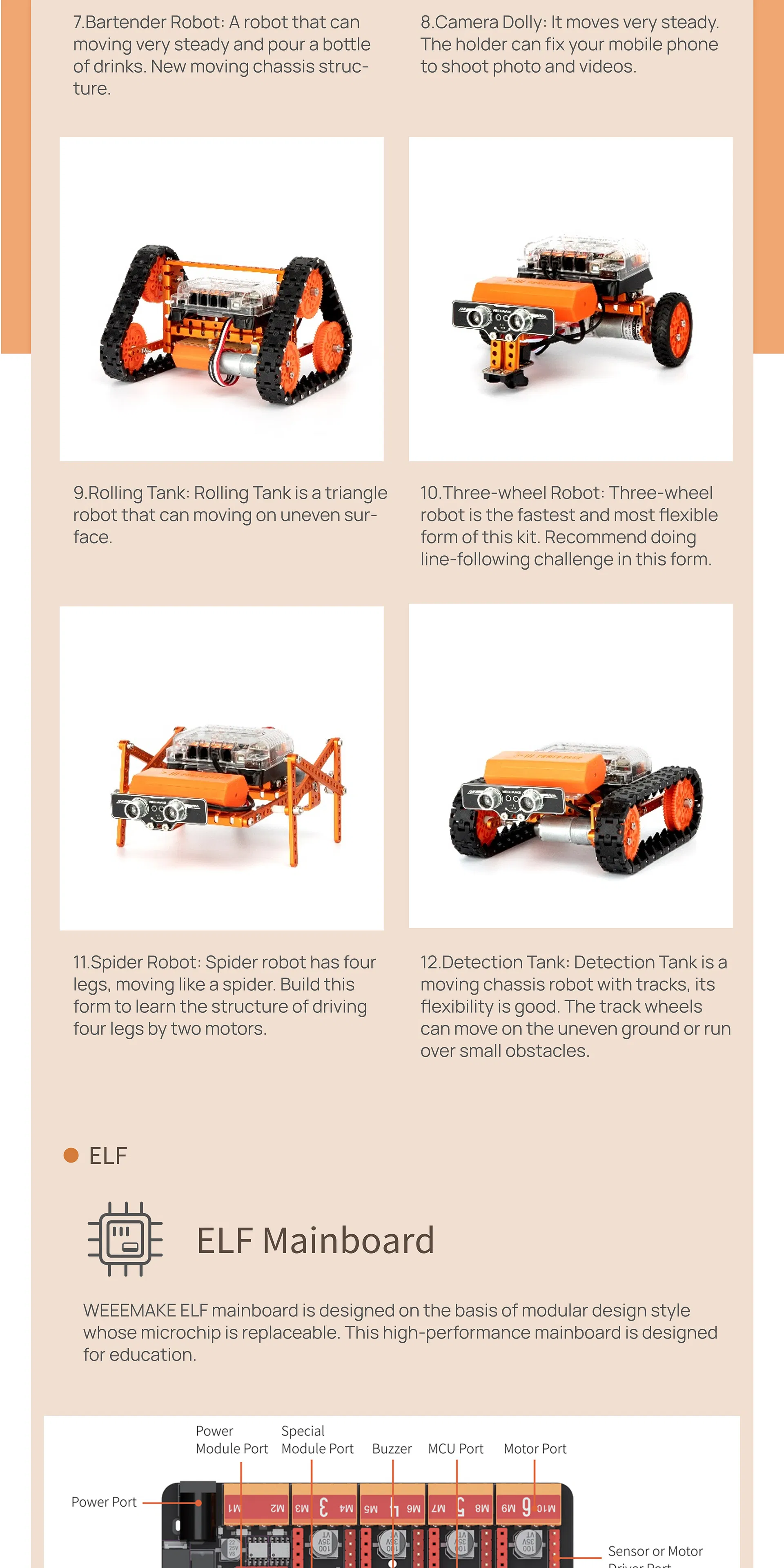

Bartender Robot
Bartender Robot
A robot featuring a new moving chassis structure that moves steadily and can pour a bottle of drink.

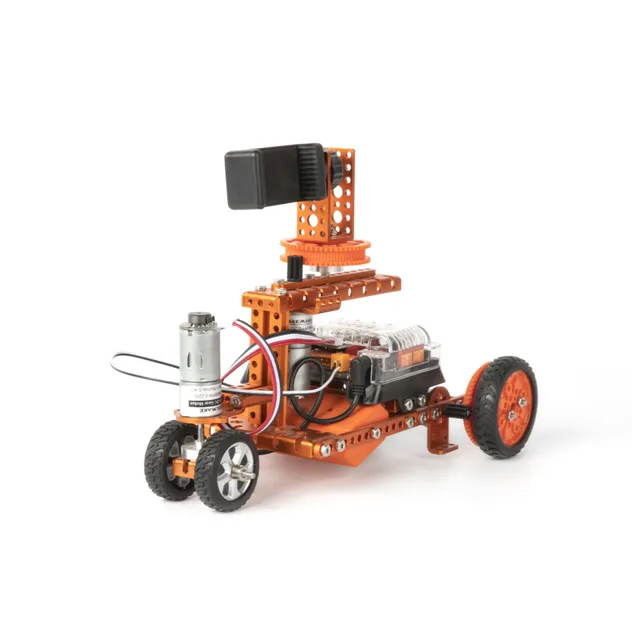

Camera Dolly
Camera Dolly
Moves steadily. The equipped holder can secure your mobile phone to shoot photos and videos.

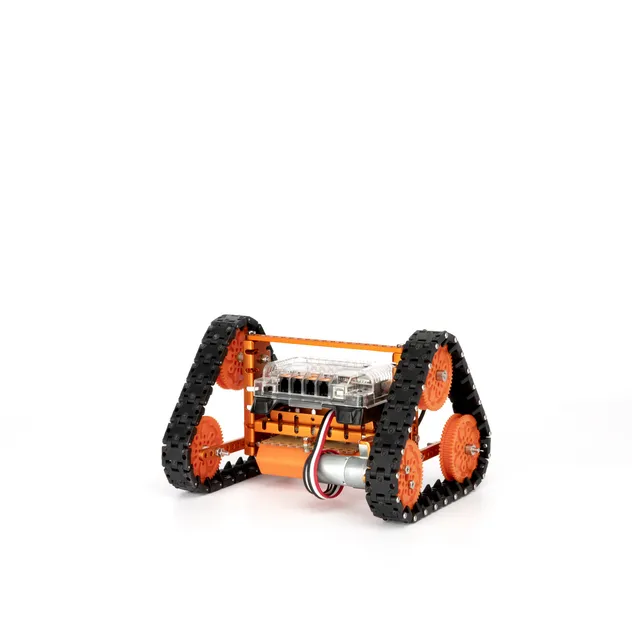

Rolling Tank
Rolling Tank
Rolling Tank is a triangular robot capable of moving on uneven surfaces.
Three-wheel Robot
Three-wheel Robot
The fastest and most flexible form of this kit. Recommended for line-following challenges.
Spider Robot
Spider Robot
Features four legs and moves like a spider. Build this form to learn how to drive four legs using two motors.
Detection Tank
Detection Tank
A flexible tracked chassis robot. The tracks allow it to travel over uneven ground and run over small obstacles.

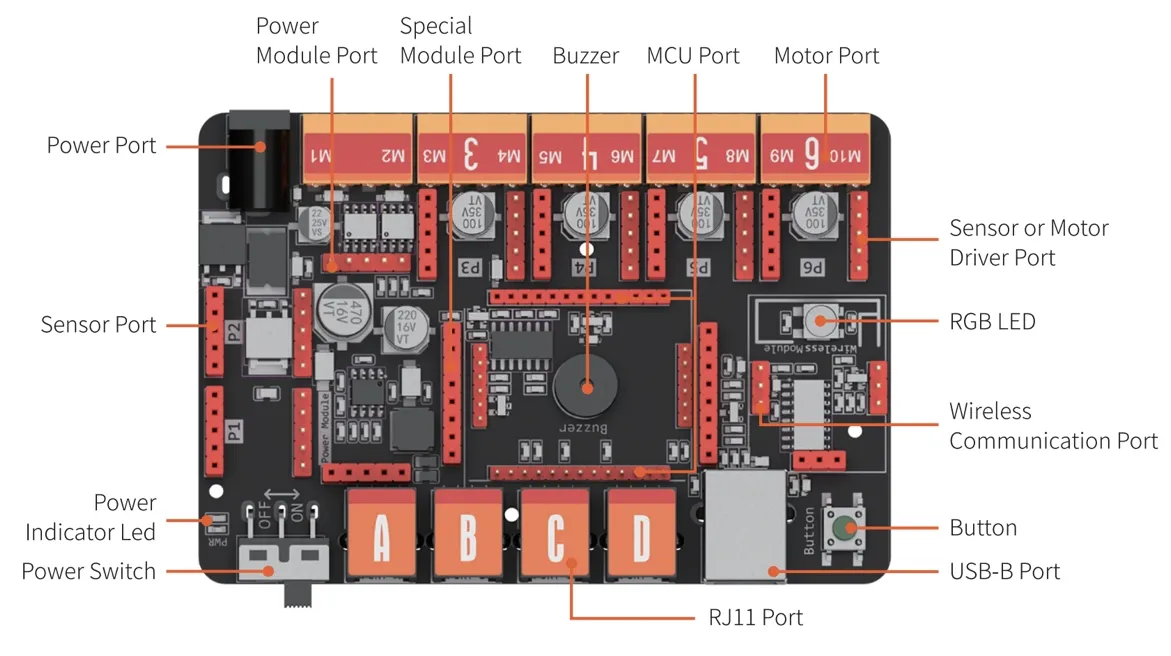

ELF Mainboard
ELF Mainboard Detail

The ELF mainboard features a modular design with a replaceable microchip, tailored for education.

1. Replaceable microchip: Supports ATMEGA-328P, ESP32 chips, etc.
2. Shared port system for motor drivers and sensor pins, making connections easy.
3. Plug-and-play wiring that works natively with WeeeCode and Arduino.

Specification
Operation Voltage 6-12V
Wiring Port 1x MCU port (ATmega 328p or ESP32)
4x RJ11 port
2 x DC motor port
6 x pin conversion port (4 of which can be stepper/encoder/dc motor port)
1 x Wireless Communication port (Bluetooth 2.4G)
1x USB port (type B)
Onboard Electronics 1x Buzzer
1x Button
1x RGB LED
Software WeeeCode (Scratch 3.0)
Arduino IDE

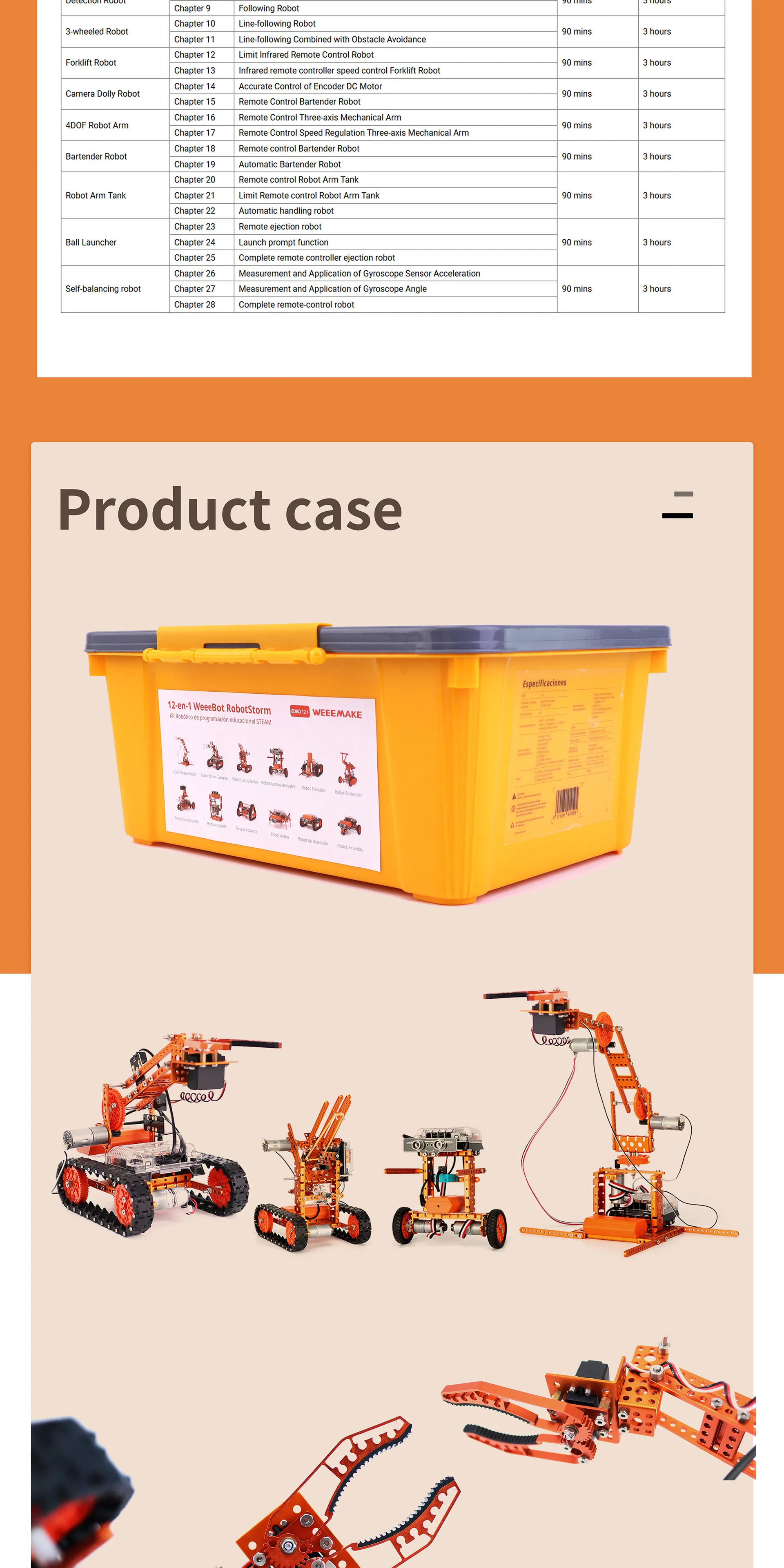

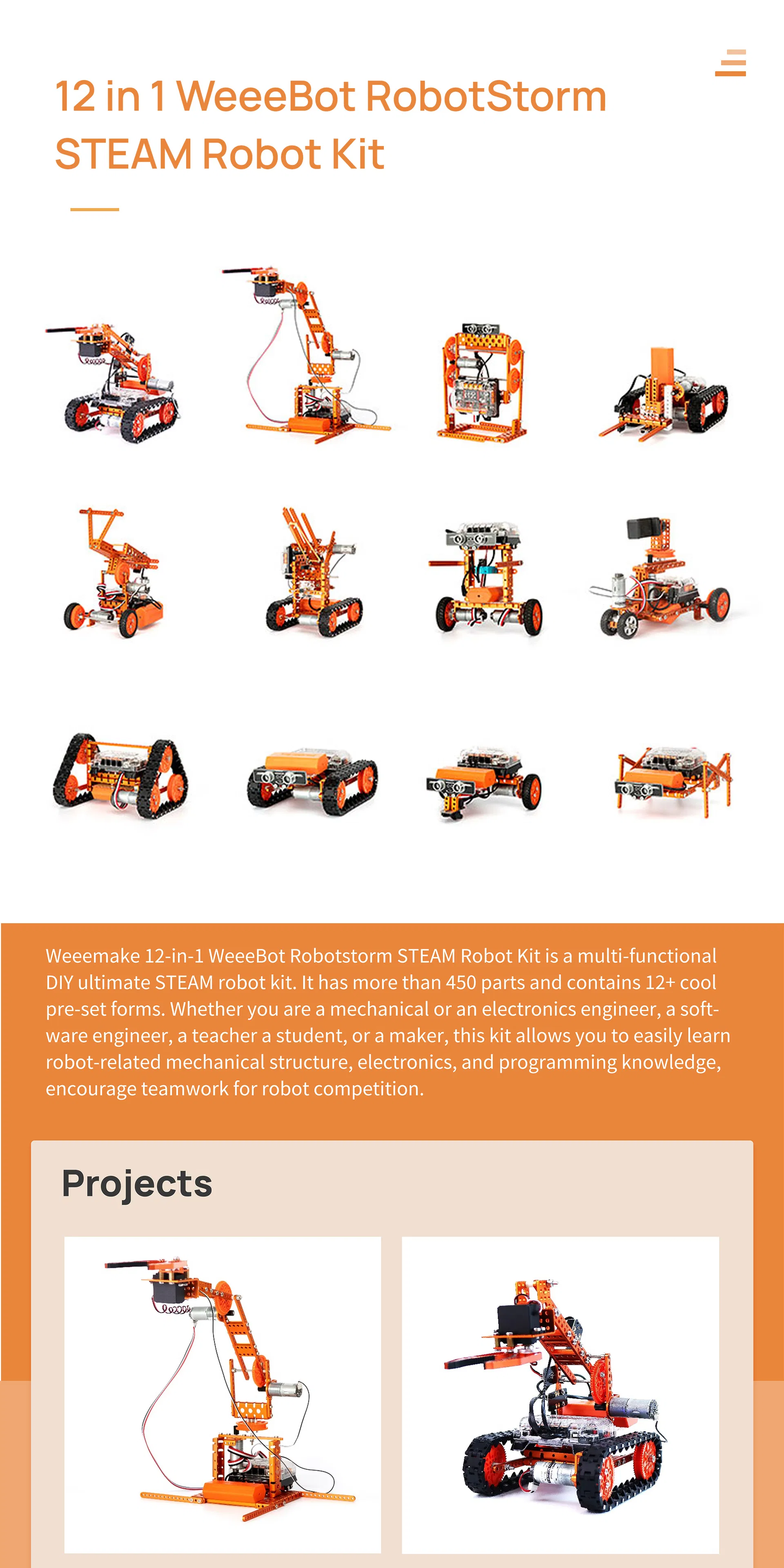

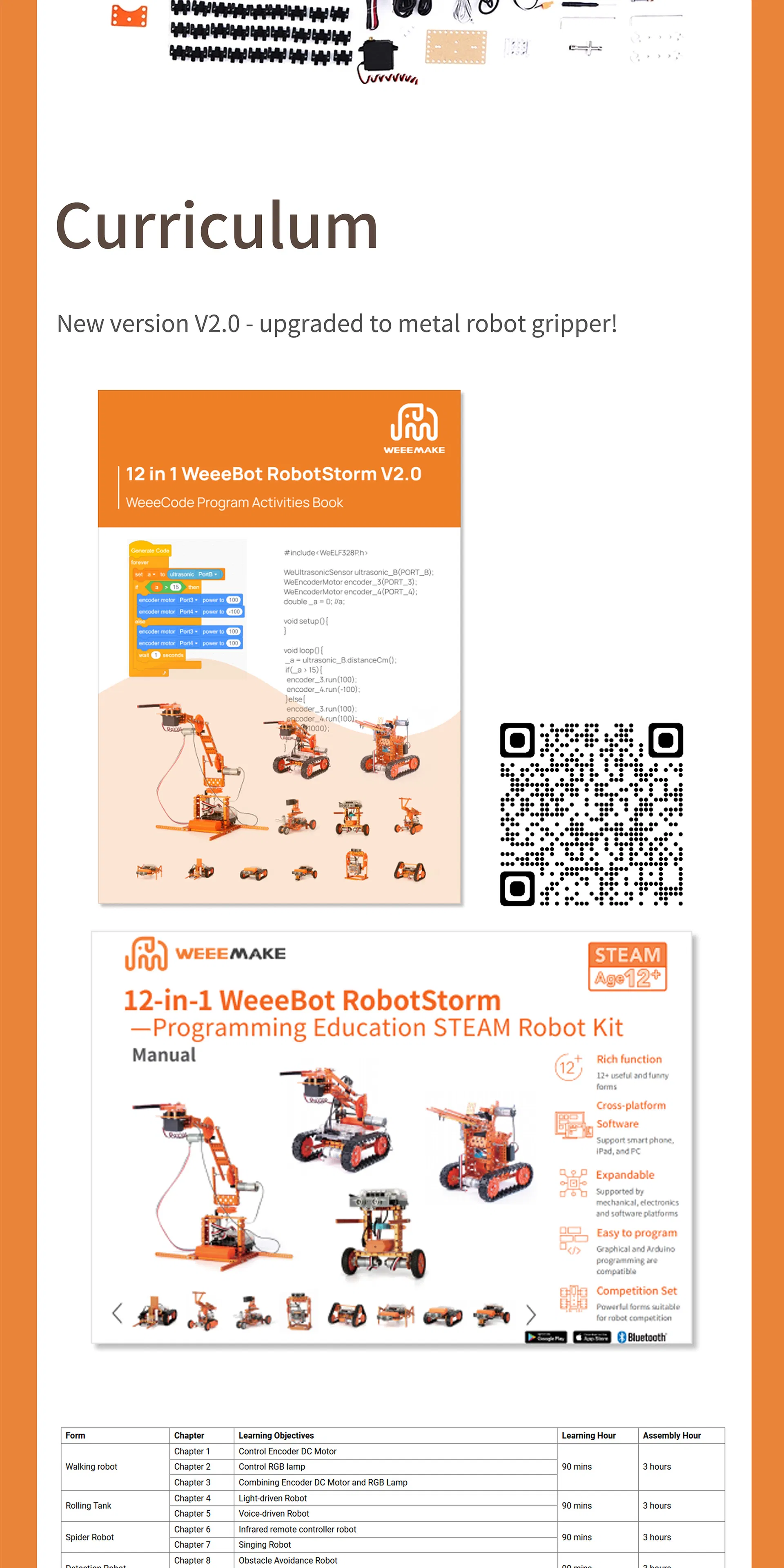

Specification details 1 Specification details 2 Specification details 3 Specification details 4 Specification details 5 Specification details 6
Specification footer detail
Certifications
Certifications Part 1 Certifications Part 2
Our Exhibition
Exhibition Booth and Showcase
Frequently Asked Questions
When I turn on the robot, it has no response. Why?
1. Low voltage: Please recharge all your batteries or replace them with new ones.
2. Improper installation: Batteries might be installed with incorrect polarity (+/-).
3. Wiring error: Check for incorrect wiring on the battery holder or the motor.
When I command the robot to move forward, it moves backward. How can I fix this?
The wiring of the motor is reversed. Please swap the cable connections to correct the direction.
How do I program my robot or restore factory settings?
Download the WeeeCode software, connect the robot to your PC via a USB cable, select the serial port "COM x" and the matching mainboard type. Use "Restore Firmware" for different configurations: "Online Firmware" for real-time testing, "Factory Firmware" to reset to default settings, or "Mobile Firmware" for control via the companion mobile app.
I cannot connect the robot to the computer via USB or wireless. How can I fix it?
Your computer may lack the necessary mainboard driver. Install the driver from the "Help" menu in the WeeeCode software, restart the robot, and attempt connection again.
Why doesn't the robot move when connected to USB power?
USB power only supplies the mainboard chip and onboard sensors. To run motors and servos, you must connect the batteries and turn on the power switch.
Why is the Line-following Sensor not working correctly?
1. Height: Ensure the sensor is positioned 1-2 cm above the map for the best detection range.
2. Environment: Avoid strong ambient light, which interferes with the sensor's optical performance.
3. Map material: Use non-reflective materials to design your custom line-following tracks.
